Personal warmer

A product allows users to lie on a mat and enjoy the heat generated by heat rays. This device is used to relieve muscle pain on the human body.

  • #Thermal rays

  • #Relieving muscle pain

1000-ceramic

Bionic(ceramic),
sulfur bionic(ceramic)

The brand is expressed by arranging two types of processed ceramics, bionic (ceramic) and sulfur bionic (ceramic), in a sophisticated manner, and it helps you feel the warm effect.

1000-safety

Safe Product

It has adopted no-magnetic heating rays and grounded circuits, and you can use them with confidence using temperature sensors and bimetals as dual safety devices. In addition, by using a temperature sensor and bimetal as a double safety device, an overcurrent prevention function is applied, so you can use it with confidence.

1000-use

Convenience of use

It is manufactured by dialing temperature control for intuitive use. In consideration of the user's convenience, the button of the regulator was reduced.

1000-waterproof

Artificial Leather fabric, waterproof fabric

The upper and side of the mat are made of durable artificial leather, and the lower part is made of waterproof fabric for easy product maintenance and cleaning.

Product Specification

  • Product Name / Model Name / Item name

    Chameleon / CDM-500B / personal heater

  • Manufacturing license number

    No.4027

  • Manufacturing Certification Number

    Manufacturing certification No. 16-4013

  • Purpose of Use

    Relieving muscle pain

  • Rated Voltage / Power Consumption

    AC 220V, 60Hz / 180W

  • Set Temperature

    25~70℃

  • Set up Time

    0 to 8 hours (stop operation after the setting time has elapsed)

  • External Dimension

    1,780x790x20mm

  • Weight / Packaging Unit

    Main Body: 8.6kg, Regulator: 435g / Cheongung’s Packaging Unit

  • Protection Type and Degree of Protection against Electrical Impact

    2 grade device, B-type part installed

  • Safety Device

    Prevent overheating of the heating unit by bimetal within the range of 90°C ±5°C

  • Manufacturing Serial Number and Date of Manufacture

    Entering in the main body of product

  • Storage Method

    operating: Temperature 0-35℃ / Humidity 20-80% / Storage: Temperature -10~40℃ / Humidity 20-80%

Example of use

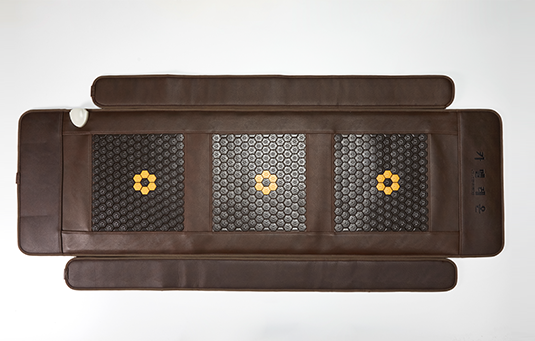

chaemeleon-use1

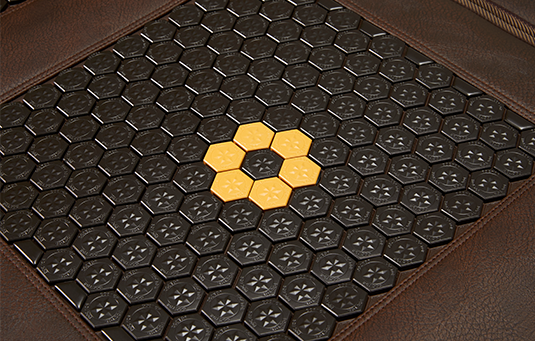

chaemeleon-use2

Warranty period

1. After a quality inspection process, this product is being shipped.

2. In the event of a failure in normal condition, it will be repaired free of charge for five years from the date of purchase in accordance with the Consumer Protection Act and the A/S policy of the headquarters.

3. In case of failure, refer to the store you purchased or contact the headquarters' A/S counseling office.
※After the guarantee period, it will be paid for.

4. However, even during the warranty period, it will be paid for in the following cases.
- Abnormal symptoms or failure, or failure caused by repair by a person other than our service engineer.
- When a user arbitrarily disassembles, assembles, or modifies a failure, a failure due to an abnormal power supply or a failure due to a defect in the connection mechanism
- Failure caused by natural disasters (fire, heat damage, flood damage, gas damage, earthquake, storm damage, lightning, etc.)

※This product is "Medical Appliance" and please read and use "Precautions" and "How to Use" carefully.

※ The appearance, specifications, etc. of the product can be changed without prior notice to improve the product.
